A Day On The St. Mary's Railroad

While the greater Jacksonville region is the well known home of major railroad companies such as CSX and Florida East Coast, there are also several smaller class III railroad operations that call the First Coast home. Today, Metro Jacksonville takes a look at the behind the scenes operation of the St. Mary's Railroad.

Published April 23, 2012 in Transit      21 Comments    Open printer friendly version of this article Print Article


feature



Just across the state line, St. Mary's Railroad is is an 11 mile railroad that has been in operation since 1865.  Today, it operates as a Class III shortline based out of St. Marys, Georgia connecting with the First Coast Railroad at the small town of Kingsland, to the west.  Metro Jacksonville's day with the St. Marys Railroad would include picking up freight cars from a St. Marys rail customer and taking those cars to Kingsland where they would be dropped off for pick up by the First Coast Railroad.  At Kingsland, we would pick up a new shipment to take back to St. Marys.



What Is A Class III Railroad

A Class III railroad, as defined by the Surface Transportation Board, is a railroad with an annual operating revenue of less than $20 million (1991 dollars). The term only applies to United States railroads, but is sometimes applied to other countries.  Class III railroads are typically local short line railroads, serving a very small number of towns or industries; many Class III railroads were once branch lines of larger railroads that were spun off, or portions of mainlines that had been abandoned.



The History of the St. Mary's Railroad


The Gilman Paper Company on July 22, 1999.  Image courtesy of Alan Cressler. Several large wells supplied water to the mill during its operation.  When the mill closed for good, the wells were turned off and water levels in the Upper Floridan Aquifer increased several feet. There were once again flowing wells in the St. Marys area.

Quote
The St. Marys and Kingsland Railroad was founded in 1865 by Captain Lemuel Johnson. It received its charter from the state of Georgia, and its first two locomotives purchased were #207 and #308.

The SM&K eventually became the Atlantic, Waycross and Northern Railroad. After the death of Johnson in 1918, the railroad was sold to the Southern Fertilizer and Chemical Company in Savannah, Georgia with the sale being completed on January 24, 1918. The AW&N was sold in 1939 to Gilman Paper Company-St. Mary's Kraft Corporation and became the St. Mary's Railroad. The SM purchased its first diesel locomotive #500 in 1945 which was nicknamed the "Goat." Ten years later the railroad constructed a 4 mile spur to service the US Army's Kings Bay ammunition storage facility which is now the Naval Submarine Base Kings Bay.

The SM was merged into the Gilman Paper Company on January 11, 1999, and operated initially under the Gilman name. The Gilman Paper Company separated the railroad by establishing a limited liability corporation operating under the name of Saint Marys Railroad, LLC. On December 17, 1999, the paper plant and railroad were purchased by the Durango Paper Company (changing its name in 2000 to the Durango-Georgia Company) and the railroad was renamed the Durango Railroad. All federal reporting requirements for the railroad were filed under that name. The company declined to change its reporting marks however, thus the locomotives and rolling stock continued to use the St. Marys Railroad name.

The Durango Paper Company closed its doors in 2002 after two industrial accidents at the plant resulted in nearly $200,000 in fines from OSHA. All employees of the paper plant lost their jobs, putting the future of the railroad in doubt. The railroad continues to operate and the St. Marys Railroad right-of-way and assets remain intact. The railroad has always maintained its own locomotives and cars with a fully equipped shop facility in St. Marys.

In January 2007, the St. Marys Railroad, LLC was purchased by the Birmingham, Alabama-based Service Rail Group. The railroad continues to be fully operational with no change in its reporting marks.
http://en.wikipedia.org/wiki/St._Mary's_Railroad



2002, would be an event changing day for the City of St. Marys, Ga and its namesake railroad.  This was the year that the Durange-Georgia Paper Company, one of Camden County's largest employers since 1941, shut down all operations, putting 900 people out of work. Mexico-based Durango Paper Company purchased the mill from Gilman Paper Company in December 1999, two years after the former owner, Howard Gilman, died.  At the time, Gilman Paper Company was the largest privately owned paper mill in the United States, producing 2.6 million pounds of paper per day.  During the mill's heyday, it employed 1,600 and was the lifeblood of the railroad, shipping and receiving hundreds of railcars each day.  In addition, the waterfront mill site included a dock where it used to receive shipments of timber via barge.

The mill's downfall would come after an accident that killed two mill workers leading to an investigation by the U.S. Labor Department's Occupational Safety and Health Administration.

In 2006, Jacksonville-based LandMar Group purchased the site for $42 million with the intent to redevelop the property as a 2,200 unit mixed-used development.  Soon after LandMar demolished the plant, the company went bankrupt, leaving the site's future up in the air.

Today, the +700-acre site is one of the largest, privately owned, deep water, rail served sites remaining in Coastal Georgia that is also served by public utilities; including water, sewer, electricity and natural gas.  With these assets in place, Camden County Development Authority believes that the site can become Georgia's third ocean port for $12 million.





Metro Jacksonville's day began at the former mill, where a locomotive and caboose awaited us.





Two blocks west of the mill, we would pick up our first car, an empty gondola, on our way to Kingsland.







Heading west, our largest pick up of the day would occur at Georgia-Pacific's St. Marys extrusion facility, where a number of covered hopper cars awaited.













Georgia-Pacific's plant produces polyethylene-coat bleached paperboard grades, ream wrap, butcher wraps, U-boards, trays, slip-sheets, and other end-use products requiring moisture or grease resistance.  The railroad's Moosehaven Central caboose is also stored on an unused siding inside the facility.

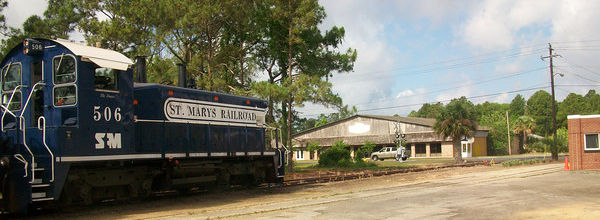

The locomotive used for our trip was an EMD SW1200RS.  Labeled SM 506, this switcher was manufactured in 1960 and used by CN before being acquired by the St Marys Railroad in February 2007.




























Interchanging At Kingsland



The only connection to other railroads along the 11 mile route is to the First Coast Railroad at Kingsland.  The First Coast Railroad (reporting mark FCRD) is a class III railroad operating in Florida and Georgia, owned by Rail Link Inc.

The FCRD was founded in April 2005 to lease 32 miles of a former Seaboard Air Line Railroad from CSX. It stretches east from Yulee to Fernandina Beach, Florida and north from Yulee to Seals, with a connection at Yulee to CSX.

The north-south line, formerly the SAL main line before it was abandoned by the combined Seaboard Coast Line Railroad in favor of the ex-Atlantic Coast Line Railroad main line to the west, connects to the St. Marys Railroad at Kingsland. The line is abandoned north of Seals.




Remnants of the former SAL main line, including this sign indicating 599 miles to Richmond, VA, still exist in Kingsland.



Interchange infrastructure determines the capacity that a railroad can send/receive freight from other railroads.  Having long sidings at the interchange allows railroads to handle the longest trains.  For example, a 90 car unit train spans over a mile long.  Small interchanges amount to stoppages and congestion on the main line, making it less timely in getting customers their freight.



At the Kingsland Yard, we dropped off our cars for First Coast Railroad and proceeded to pick up a new shipment for a St. Mary's Railroad customer.





Today, it's hard to imagine that this track once had trains running up to the Northeast at 79mph.



With our new load, we head back to pick up the rest of the Metro Jacksonville crew and head back to the St. Marys yard.







Crossing South Lee Street in Kingsland, GA.  With 12,305 residents, Kingsland is the largest city in Camden County and 35.9 miles north of Jacksonville.  A recent annexation has expanded the city's borders to 44.3 square miles, making it the seventh largest city in the state of Georgia by land mass.

Kingsland has been selected by the Oprah Winfrey Network as the setting for a new original series to premiere later this year, Lovetown, USA. After a nationwide search, OWN and BBC Worldwide Productions have selected Kingsland,Georgia to be transformed into "Lovetown, USA."











Nearing the end of the line back in St. Marys.  The railroad was acquired by Birmingham, AL-based The Boatright Companies in 2007.  In addition to Georgia-Pacific, the railroad has a contract with the U.S. Navy to transport items to the Kings Bay naval base, including ballistic missiles for submarines.




At the end of the line, Theater by the Trax is located in the railroad's former locomotive service facility at 100 Osborne Street.  Originally, locomotives entered the rear of the building onto elevated rails that allowed workers to get underneath and change oil, grease axles and other service work.









Highlighted in red, the St. Marys Railroad operates between St. Marys and Kingsland, GA.  In Kingsland, it interchanges with the First Coast Railroad, which interchanges with CSX at Yulee.


Article and photographs by Ennis Davis & Sarah Gojekian. Video by Ryan Rummel.
